Weeks 12 & 13

I. Problems with Harder Problems

I downloaded the complete set of training problems from the Machine Learning Repository at the University of California at Irvine, and wrote a standalone program to convert the attribute-value samples to numeric equivalents readable by my program.
I tried two of what I thought were among the simpler problems in this set, and unfortunately was not able to come anywhere close to convergence on either. The problems I tried were tic-tac-toe (determining whether the "X" or "O" player has three in a row), and balancing a scale (given a weight and distance on the right and left, determine whether the pivot point should be moved left or right to keep the scale from tipping over).
If the inputs to the balance-scale problem are i₁, i₂, i₃, and i₄, then, as we all know from physics, a network that solves this problem simply needs to output:
- 1 if i₁*i₂ > i₃*i₄
- .5 if i₁*i₂ = i₃*i₄
- 0 otherwise
Since it seemed to me that the problems couldn't get much simpler than this, I suspected there must be something wrong with my code. To test this, I broke the balance-scale problem down into simple subproblems, and attempted to design networks by hand that would solve them.

To make things easier on myself, I added a "File" menu to the Network Editor that allows you to load and save networks. I then used a text editor to design a network that would solve the comparison problem (i.e. output a 1 if the first input is greater than the second, 0 otherwise). By adding a "Network" menu with an "Eval" option, I was able to verify that the comparison problem is solvable with my code.
I was not, however, able to think of any way to design a network to solve the multiplication problem. Clearly there must be a way for neural networks to do this, but right now I cannot imagine what it is. I wasn't able to evolve a network to solve this problem, either.

In order to show the volatility (i.e. sigma magnitude) of each weight, I drew a small line perpendicular to each weight. In keeping with the scheme I used to show weight strengths, I drew a gray bar as a base, and then drew a smaller green line on top of it, whose length and brightness indicate the sigma strength.

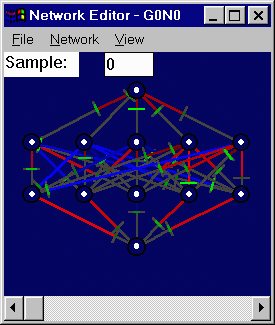

As the following two screen shots show, this approach works well when the number of weights between layers is small, but gets crowded fairly quickly as this value increases.
In the screen shots above, the lengths of the green lines are scaled linearly relative to the maximum sigma in the network. Originally, I tried scaling relative the maximum possible sigma (i.e. the upper bound), but this tended to produce a lot of very short lines which were indistinguishable from each other.

An executable demo of my ESWin program is available here. This file contains ESWIN.EXE, as well as some sample training sets and networks.
