Dynamic scene, multiple frames, single simulation

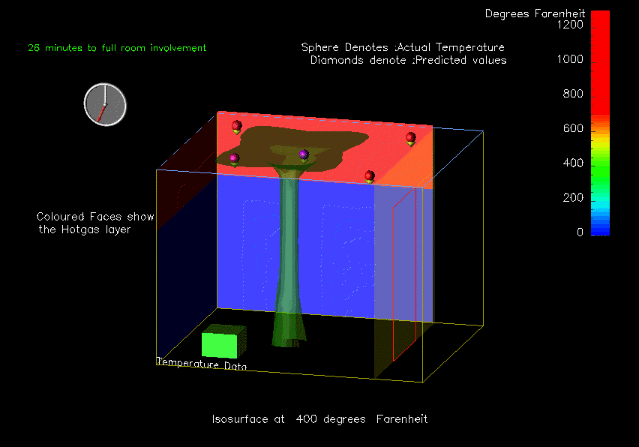

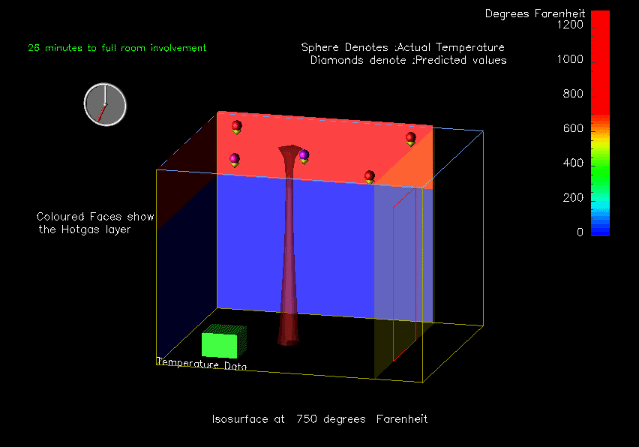

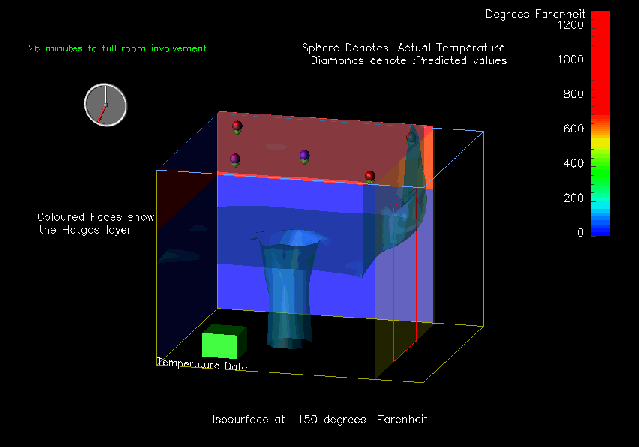

Time slice of multiple frames single simulation visualization.

With multiple frames we can separate the individual isotherms into separate frames, or use one frame to show the DSSFSS case and show air flow as a field of arrow glyphs in a second frame. Alteratively, we can show advanced frames (e.g., time plus 5 minutes, time plus 10 minutes) to allow easy assessment of the rate and diretion of fire growth.
