Static scene, single frame, single simulation

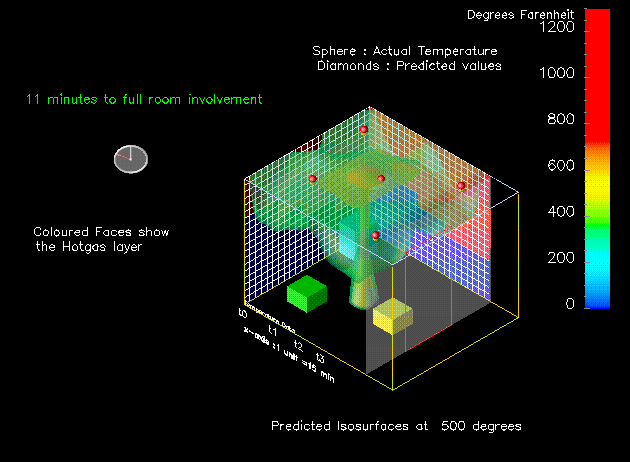

Diagonal view

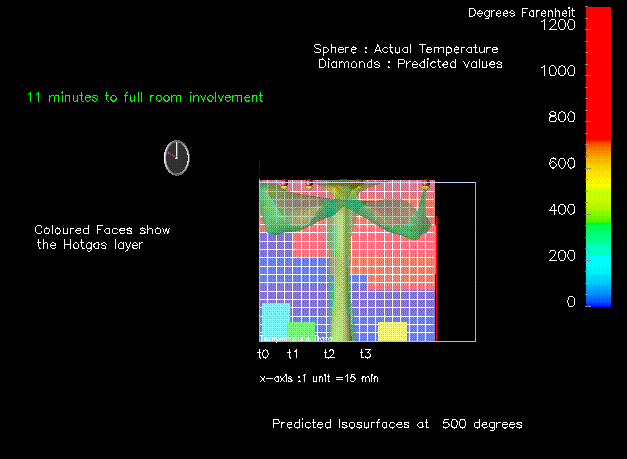

Front view

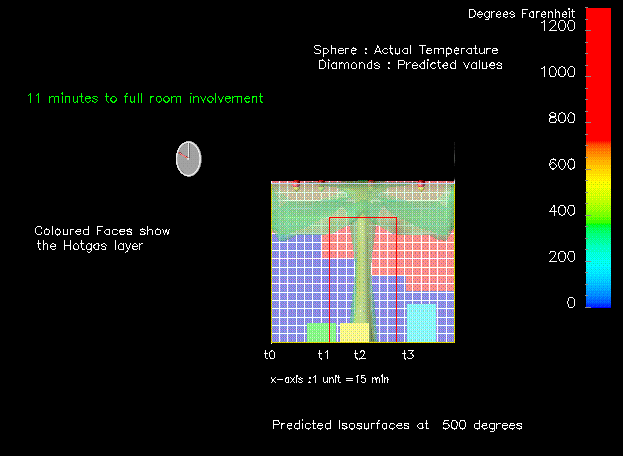

Right side view
The isotherms are generated for a single temperature at different times and
for a single simulation.The hot gas layer is shown on the walls and is plotted
against time. The time to full room involvement shown is that for the most
recent time slice.
